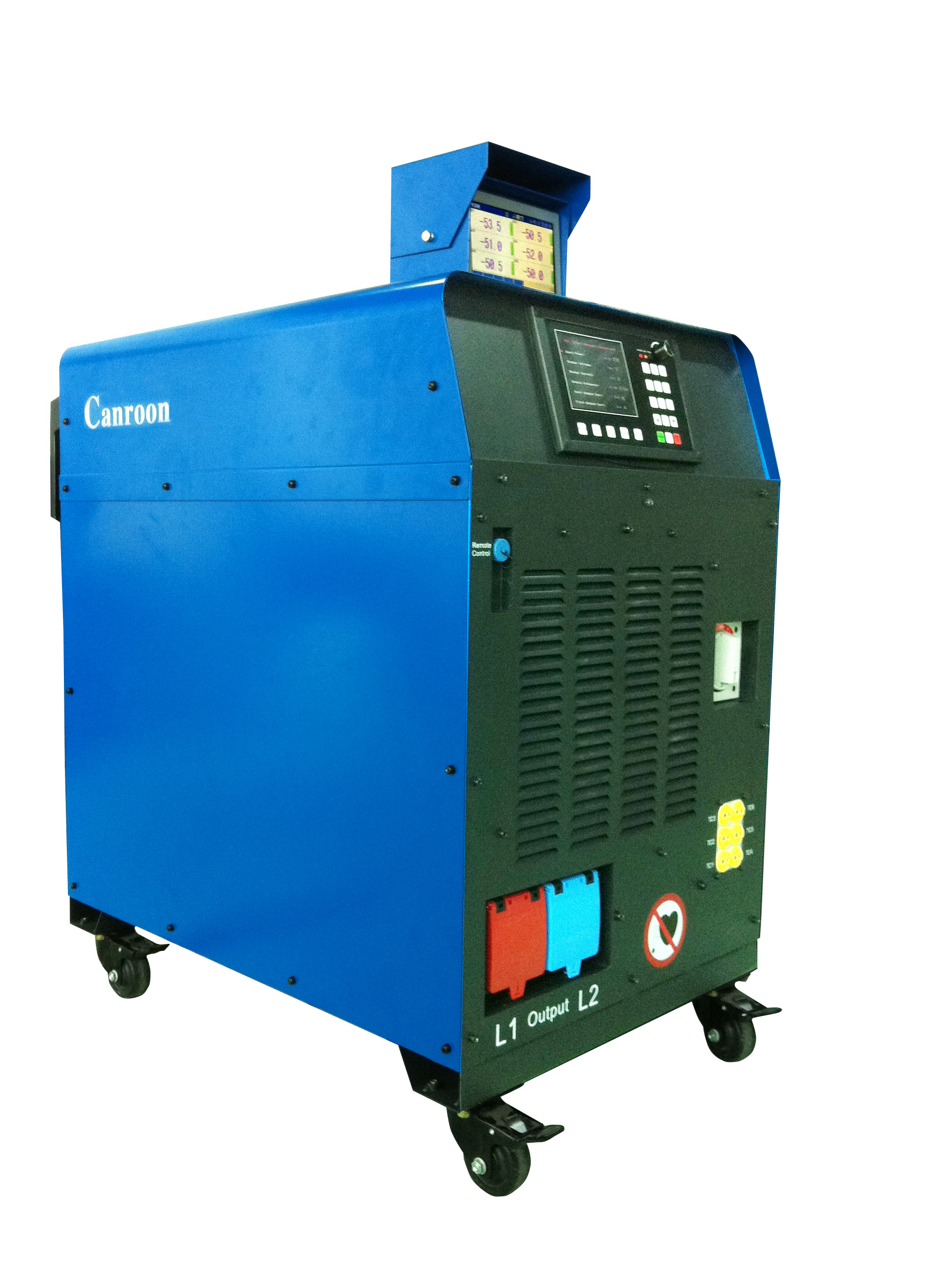

1450°F Air-Cooled Induction Preheater | 6-Zone Control & Fast Heating CR2000 Series
  • 1450°F Air-Cooled Induction Preheater | 6-Zone Control & Fast Heating CR2000 Series
Miejsce pochodzenia Shenzhen Chiny
Nazwa handlowa canroon
Orzecznictwo CE ISO9001:2008
Numer modelu CR2000
Minimalne zamówienie 1 kawałek
Cena Negotiable price
Szczegóły pakowania Karton lub zależy od Ciebie
Czas dostawy Tydzień po potwierdzeniu płatności
Zasady płatności KIESZONKA NA ZEGAREK
Możliwość Supply 20 sztuk / sztuk na tydzień
Szczegóły Produktu
Model kontrolny Kontrola cyfrowa Moc wejściowa 380 V 3-faza
Rezonans Rezonans serii Temperatura MAX 1450 ° F.
Transport Drogą morską lub powietrzem Ocenione wyjście 80kW 1-35 kHz
Zastosowania Do rur stalowych konstrukcyjnych Tryb chłodzenia SPRAWDZIone powietrze
Podkreślić

air-cooled induction preheater 1450°F

,

6-zone control induction hardening machine

,

fast heating CR2000 series preheater
opis produktu

80Kw Preheating Induction Hardening Machine For Structural Steel Tube to 300°F



Quick Detail:



Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-080A-14T

Voltage:380V

Current:122A

Rated Capacity:80KW

Rated Duty Cycle:80KW

Dimensions:880*663*982

Weight:201Kg

Usage:induction temperature stress relievers

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder



Description:



Move beyond conventional limits. The CR2000 combines air-cooled operation (up to 1450°F) with intelligent features to eliminate hotspots and delays. Its six-zone thermal control guarantees uniformity, while the programmable interface and built-in coaching empower any operator to achieve peak coil performance and flawless ramp/hold cycles with ease.



Applications:



With the introduction of the Induction Pipe preheat , this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

  • Welding fabrication and construction;
  • Preheating of welds;
  • Post-weld heat treatment;
  • Coating removal;
  • Shrink Fit and so on
  • Pre-heating of structural steel tube to 300°F



Specifications:



Input Amperes at Rated Output

380V:122A

Thermal conversion efficiency

More than 90%

Maximum Rated output

80KW

Cooling Mode

Air cooled

Input Power

380V 3-Phase,50HZ

Rated Output

80KW at 100% duty cycle,1-35KHZ

TC input

6 circuit

Digital Recorder

Optional

Control Model

Digital Control

Resonance

Series Resonance

Temperature

Max 1450°F

Dimensions

H:880MM W:663MM D:982MM

Transportation

By sea or By Air

Weight

201KG

Warranty

12 Months





Competitive Advantage:

  • ersatile Mobility: Optional running gear for easy transport.

  • Smart Control: Programmable temperature profiles via a simple interface.

  • Perfect Uniformity: Multi-TC control for consistent heating and cooling.

  • Built-in Safety: Open output detection and ground fault protection.

  • Low Operating Cost: No fuel, reusable insulation (50+ cycles).

  • Superior Quality: Induction heating prevents surface damage.

  • Extreme Speed: Faster time-to-temperature boosts productivity.

  • Worker Safety: No open flame or explosive gases.

  • High Efficiency: >90% energy transfer to the part.

  • Easy Setup: Flexible blankets and user-friendly insulation.
